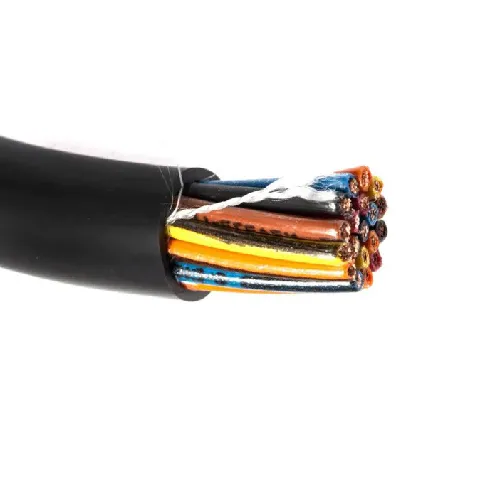

10 AWG 3 GMD Unshielded VNTC Tray Cable TC-ER THHN Insulation PVC Jacket 600V E2
Applications:
Tray Control Cable THHN/PVC 600V is an electrical cable suitable for all cable trays indoors and outdoors. THHN/PVC tray cables perform identically well in moist and dry locations. The cable is rated at 90°C for dry and 75°C for wet applications. THHN/PVC tray cable is equally great for free air, raceways, exposed run and being directly buried in the ground. The electrical cord is rated 600 V. It has crush and impact requirements of Type MC cable.
Also Known As:
Cable Tray, Cable Tray Types, 10 AWG Electrical Cable Tray, wire cable tray, cable tray wire, 10 AWG THHN cable, PVC tray cable, raceway cable, thermoplastic tray cable, wire tray, multi-conductor THHN cable, cable tray types, 10 AWG PVC cable tray, control cable, electrical cable tray, cable tray systems, cable tray price, control cable, electrical tray, raceway cable tray, flexible cable tray, industrial cable tray, underground cable, tray control cable with the ground, direct burial cable, exposed run tray cable, ER cable, ER tray cable.
Standards:
• UL Listed as TC-ER (Exposed Run) per UL Standard 1277 and used in accordance with NEC for 3 or more conductors
• UL Listed as TC-ER-JP (Joist Pull) and used in accordance with NEC
• Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC
• Rated 90°C wet or dry
• Meets cold bend test at -25°C
• ICEA S-95-658, ICEA S-73-532
• UL 66, UL1277
• UL1685 and IEEE 383 70,000 BTU Vertical Flame Test
• UL Listed to IEEE1202 and CSA FT4 70,000 BTU Flame Test
Conductor:
• Fully annealed bare copper Class B compressed strand per ASTM B-3 and ASTM B-8 or flexible stranding per UL 66
Insulation:
• Heat and moisture resistant Polyvinylchloride (PVC) per UL 66
• Clear Polyamide (Nylon) jacket per UL 66
Assembly:
• Conductors are cabled together with or without fillers as required to form a round, compact cable core with a binder tape as needed
Jacket:
• Flame and sunlight resistant black PVC rated 90°C wet or dry per UL 1277. Ripcord provided for jackets with thickness of 60 mils or less.
Color Code:
• ICEA Method 1, Table E-2
